Blockchain explorer

Run BTC RPC Explorer on Node.js 22 behind Caddy HTTPS. Private lookup for blocks, transactions, mempool, fee estimates, UTXO queries. No leakage to public explorers.

Querying a public block explorer is one of the sneakiest ways to leak your financial activity. Every address you search, every transaction ID you paste, every fee chart you refresh tells the explorer operator "this address matters to somebody at this IP." Trust your own node instead.

BTC RPC Explorer is a small, database-free web UI by Daniel McNally. It talks to your Bitcoin Core over RPC and to Electrs for address balance queries, gives you a clean browser interface for blocks, transactions, mempool, and fee estimates, and never phones home.

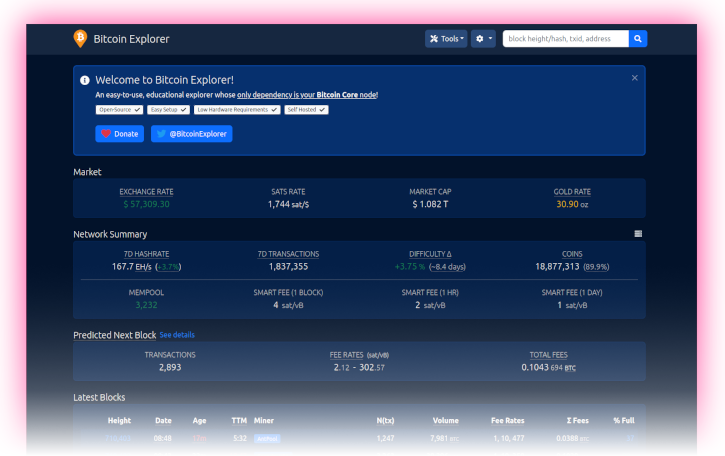

BTC RPC Explorer homepage showing the latest block, mempool summary, and fee estimates — probably outdatedBTC RPC Explorer homepage, reading from your own Bitcoin Core + Electrs

What you'll do

Install Node.js 22 LTS from NodeSource.
Create a dedicated btcrpcexplorer user and clone the app.
Wire up the .env config so it reads bitcoind's cookie and queries Electrs for address data.
Run it as a systemd service.
Put Caddy in front for HTTPS on the LAN.

Prerequisites

You finished Bitcoin client and Electrum server. Bitcoin Core is fully synced (verificationprogress at 1.0), txindex=1 is in bitcoin.conf (the default config in this guide already has it), and Electrs is indexed and answering queries.

Install Node.js 22 LTS

Debian 13 ships Node.js 20; BTC RPC Explorer is tested against Node 22. Add the NodeSource repo so apt upgrade keeps it current.

Add the NodeSource repository:

curl -fsSL https://deb.nodesource.com/setup_22.x | sudo -E bash -

Install Node.js:

sudo apt install nodejs

Confirm the runtime version:
```
node --version
```
Confirm the package manager version:
```
npm --version
```
Expected output is a v22.x line from node, and a 10.x or newer line from npm.

Create the service user

Create the service user:

sudo adduser --disabled-password --gecos "" btcrpcexplorer

Add it to the bitcoin group:

sudo adduser btcrpcexplorer bitcoin

The bitcoin group membership is what lets the explorer read /data/bitcoin/.cookie for RPC authentication.

Install BTC RPC Explorer

Switch to the new user:

sudo su - btcrpcexplorer

Resolve the latest release tag into a VERSION shell variable:

VERSION=$(curl -sL https://api.github.com/repos/janoside/btc-rpc-explorer/releases/latest | grep -oP '"tag_name": "v\K[^"]+')

Echo it back so you can sanity-check what you're about to install:

echo "Installing BTC RPC Explorer $VERSION"

Clone the source for that tag:
```
git clone --branch "v$VERSION" https://github.com/janoside/btc-rpc-explorer.git
```
Move into the new directory:
```
cd btc-rpc-explorer
```
Pull in dependencies with npm. Expect this to take 10 to 20 minutes on a Pi 5, a lot of native modules get built from source:
```
npm install
```

About the npm audit noise

npm install will print warnings about vulnerabilities in transitive dependencies. Read them, but don't panic. The explorer serves only to you on your LAN; the realistic threat surface is your own browser, not a remote attacker poking at the Express server. Don't blindly npm audit fix, it'll break things.

Configure

The explorer reads its config from .env in the install directory. A heavily commented template ships with the source. You only need to change a handful of lines.

Copy the template:
```
cp .env-sample .env
```
Open it for editing:
```
nano .env
```

Set the Bitcoin Core connection (cookie auth, no password to leak):

BTCEXP_BITCOIND_HOST=127.0.0.1
BTCEXP_BITCOIND_PORT=8332
BTCEXP_BITCOIND_COOKIE=/data/bitcoin/.cookie
BTCEXP_BITCOIND_RPC_TIMEOUT=10000

Route address-balance queries through your local Electrs so they never leak to a third party:
```
BTCEXP_ADDRESS_API=electrum
BTCEXP_ELECTRUM_SERVERS=tcp://127.0.0.1:50001
```
Pick a privacy posture. "More information" mode pulls exchange rates and a few other externally-hosted tidbits over the public internet:
```
BTCEXP_PRIVACY_MODE=false
BTCEXP_NO_RATES=false
```
Or lock it down completely:
```
BTCEXP_PRIVACY_MODE=true
BTCEXP_NO_RATES=true
```
(Optional) Gate the UI with a password. Any username works; only the password is checked. Use password [D] from Preparations:
```
BTCEXP_BASIC_AUTH_PASSWORD=YourPasswordD
```
Dark theme, because it's a block explorer and you're not a monster:
```
BTCEXP_UI_THEME=dark
```
Save, exit, and drop back to admin:
```
exit
```

Run it once by hand

Before handing it to systemd, start it manually to shake out any config mistakes.

Switch to the service user:

sudo su - btcrpcexplorer

Move into the install directory:

cd ~/btc-rpc-explorer

Run the app in the foreground:

npm run start

The explorer should bind to http://127.0.0.1:3002. If the console fills with RPC errors, Bitcoin Core is either not running or still reindexing, leave this alone until bitcoin-cli getblockchaininfo reports a verificationprogress at 1.0.

Stop it with Ctrl-C and exit back to admin:

exit

Systemd unit

Create the service file:

sudo nano /etc/systemd/system/btcrpcexplorer.service

Paste:

# RaspiBolt: systemd unit for BTC RPC Explorer
# /etc/systemd/system/btcrpcexplorer.service

[Unit]
Description=BTC RPC Explorer
Wants=bitcoind.service electrs.service
After=bitcoind.service electrs.service

[Service]
WorkingDirectory=/home/btcrpcexplorer/btc-rpc-explorer
ExecStart=/usr/bin/npm start
User=btcrpcexplorer
Restart=on-failure
RestartSec=30

# Hardening
PrivateTmp=true
NoNewPrivileges=true

[Install]
WantedBy=multi-user.target

Enable the service so it starts on boot:
```
sudo systemctl enable btcrpcexplorer
```
Start it now:
```
sudo systemctl start btcrpcexplorer
```
Follow the log and watch for a "listening on port 3002" line, then Ctrl-C:
```
sudo journalctl -f -u btcrpcexplorer
```

HTTPS on the LAN with Caddy

The explorer's Express server speaks HTTP on port 3002. You want browser access over HTTPS, and you want it without fighting certificate tooling. Caddy handles this in five lines of config and issues itself a certificate from its own internal CA.

Install Caddy

The official Caddy apt repo is the right source. One-time setup.

Install the helper packages needed to add a third-party repo over HTTPS:

sudo apt install -y debian-keyring debian-archive-keyring apt-transport-https curl

Import Caddy's signing key into a dedicated keyring:

curl -1sLf 'https://dl.cloudsmith.io/public/caddy/stable/gpg.key' \
  | sudo gpg --dearmor -o /usr/share/keyrings/caddy-stable-archive-keyring.gpg

Add the Caddy stable apt source:

curl -1sLf 'https://dl.cloudsmith.io/public/caddy/stable/debian.deb.txt' \
  | sudo tee /etc/apt/sources.list.d/caddy-stable.list

Refresh the package index:

sudo apt update

Install Caddy:

sudo apt install caddy

Confirm it landed:

caddy version

Configure the reverse proxy

Open the Caddyfile:
```
sudo nano /etc/caddy/Caddyfile
```
Replace the default welcome-page stanza with:
```
# RaspiBolt: Caddy HTTPS reverse proxy
# /etc/caddy/Caddyfile

# BTC RPC Explorer
:4000 {
  tls internal
  reverse_proxy 127.0.0.1:3002
}
```
tls internal tells Caddy to mint and manage a self-signed certificate from its own CA, no public DNS needed.

Reload Caddy so it picks up the new config:

sudo systemctl reload caddy

Open the firewall port:

sudo ufw allow 4000/tcp comment 'BTC RPC Explorer (Caddy)'

Point your browser at https://raspibolt.local:4000 (or the Pi's IP address). Click past the browser's one-time certificate warning, self-signed certs trigger that, and on a LAN it's fine.

Trust Caddy's CA on your computer (optional)

Tired of the certificate warning? Caddy's internal CA root lives at /var/lib/caddy/.local/share/caddy/pki/authorities/local/root.crt on the Pi. Copy that file to your computer, import it into the system trust store, and all the Caddy-fronted services on this node will be trusted without prompting. Skip this if you'd rather keep the CA contained to the Pi, first-use trust is fine too.

Main takeaway: you can now browse blocks, transactions, and fee estimates at https://raspibolt.local:4000 without telling anyone else what you're looking at.

Remote access over Tor (optional)

Want the explorer available from a phone on mobile data? Expose it as a Tor hidden service and visit it through Tor Browser.

Add a stanza to /etc/tor/torrc:

sudo nano /etc/tor/torrc

# Hidden service: BTC RPC Explorer
HiddenServiceDir /var/lib/tor/hidden_service_btcrpcexplorer/
HiddenServiceVersion 3
HiddenServicePort 80 127.0.0.1:3002

Reload Tor so it picks up the new hidden service:

sudo systemctl reload tor

Fetch the generated .onion address:

sudo cat /var/lib/tor/hidden_service_btcrpcexplorer/hostname

Open that address in the Tor Browser. No certificates, no warnings, Tor's own end-to-end encryption replaces TLS.

Updating BTC RPC Explorer later

Stop the service:

sudo systemctl stop btcrpcexplorer

Switch to the app user:

sudo su - btcrpcexplorer

Move into the install directory:
```
cd ~/btc-rpc-explorer
```
Fetch the latest tags:
```
git fetch
```
Discard any local changes:
```
git reset --hard HEAD
```
Resolve the newest version tag into a shell variable:
```
VERSION=$(git tag | sort --version-sort | tail -n 1)
```
Sanity-check the resolved version:
```
echo "Upgrading to $VERSION"
```
Check out that tag:
```
git checkout "$VERSION"
```
Refresh dependencies:
```
npm install
```
Drop back to admin:
```
exit
```
Restart:
```
sudo systemctl start btcrpcexplorer
```

Always skim the changelog first, breaking changes are rare but not unheard of.
